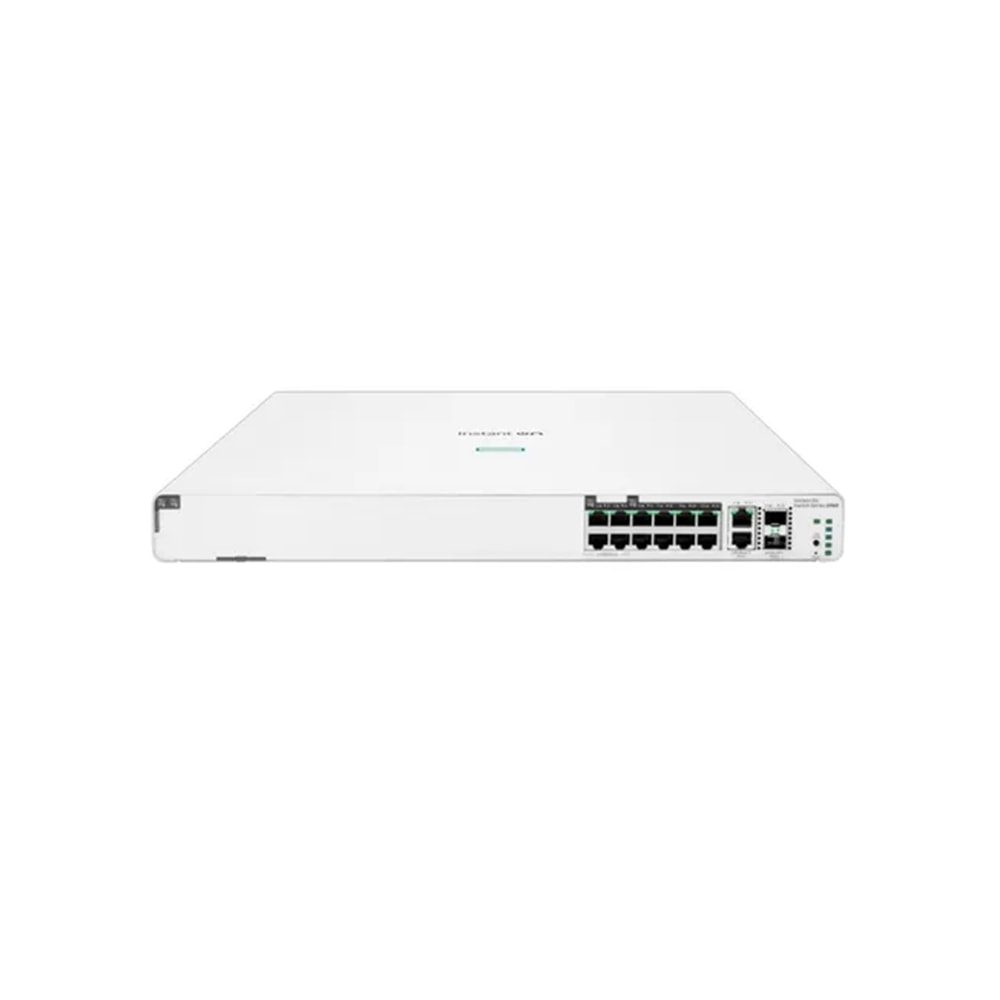

Switch PoE HPE Aruba IOn 1960 12P S0F35A (8x1G + 4x2.5G) +2SFP+ 480W

HPE Networking Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Switch  (S0F35A)

Specifications

I/O ports and slots

4 RJ-45 autosensing 1G/2.5GBASE-T ports with IEEE 802.af/at/bt CL6 PoE

8 RJ-45 autosensing 10/100/1000BASE-T ports with IEEE 802.af/at CL4 PoE

(IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3bz Type 2.5GBase-T, IEEE 802.an 10GBASE-T);

Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only

2 SFP+ 10GbE ports 2 RJ-45 autosensing 100/1000/10GBASE-T ports

Dimensions

1.73 x 17.44 x 13.78 in (4.39 x 44.3 x 35 cm)

Weight

11.55lb (5.24kg)

Processor and Memory

Single-Core ARM v7 Cortex-A9 @800MHz

1GB DDR3; 512MB NAND flash; Packet

buffer size: 1.5 MB

Performance

100 Mb Latency¹

< 4.1 uSec

1000 Mb Latency¹

< 1.8 uSec

2.5G Latency¹

< 6.7 uSec

10G Latency¹

< 2.8 uSec

Throughput (Mpps)¹

172 Mpps

Notes: ¹Tested with 64 byte packet size

Maximum Stacking Capacity

80 Gbps

Maximum Standalone Switching Capacity

116Gbs

Routing Table size (# of static entries)

992

MAC Address table size (# of entries)

16,000 entries

Reliability MTBF (years)

40.8

Environment

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics²

LWAd = 3.4 Bel
